Lattice

Kimbers Timbers are the premier lattice manufacturers on the central coast. We make our entire lattice on site from lath to framed Custom Sheets. We can make just about any size sheet you need, no job too big or too small.

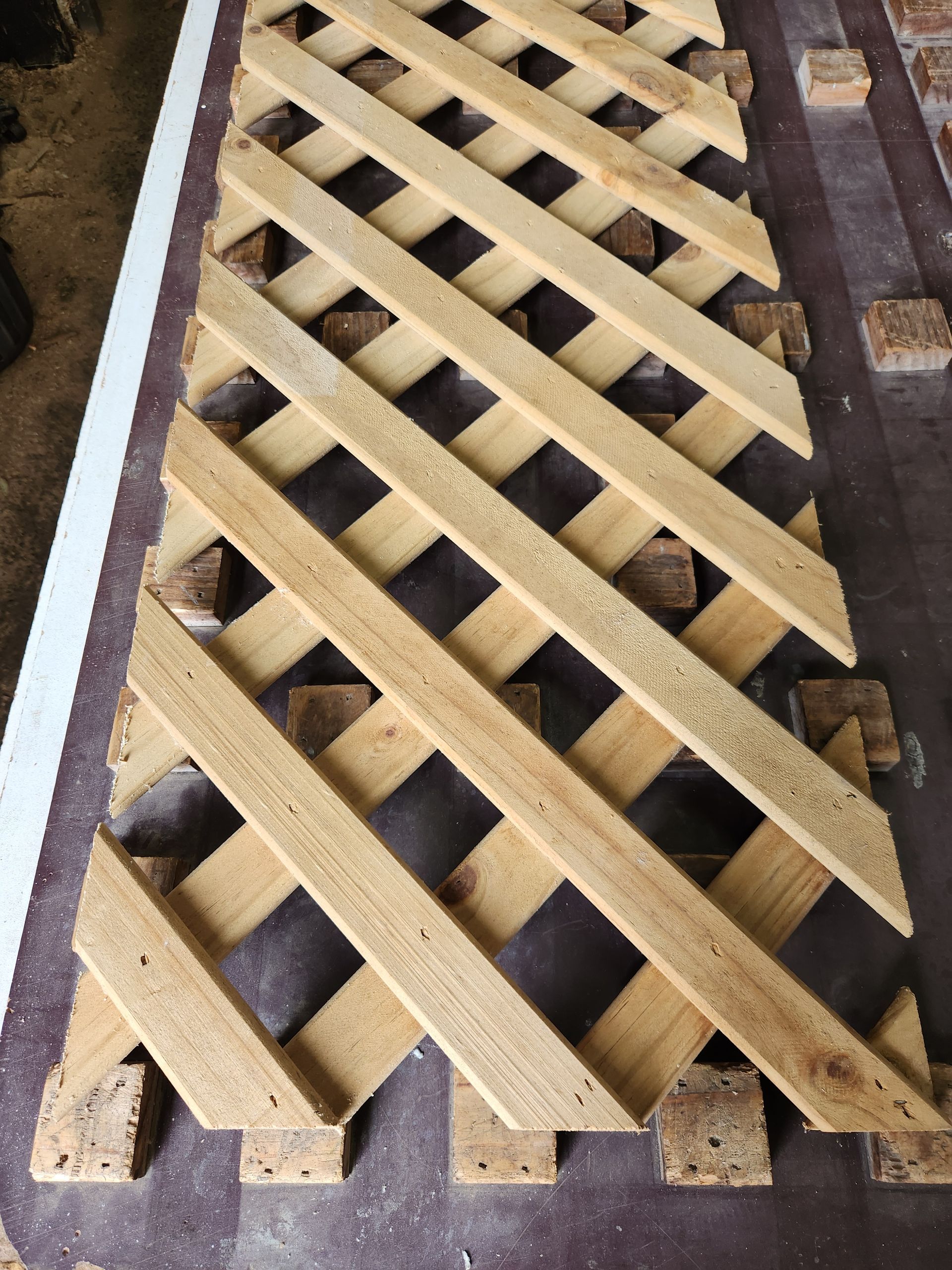

Custom Lattice Sheets

Just give us a size and we can make your lattice sheet and frame it all read to install.



Stock Lattice Sheets
DAR 45 x 13mm P/R lath 50 x 50mm Hole Opening

Sawn 35 x 13 mm lath 100 x 100mm Hole Opening

Size (Nominal)

Finnish

Style

Finnish Size

0.900 x 1.800

DAR

Diagonal

895 x 1865

0.900 x 2.400

DAR

Diagonal

895 x 2415

1.200 x 1.800

DAR

Diagonal

1215 x 1865

1.200 x 2.400

DAR

Diagonal

1215 x 2415









0.900 x 1.800

DAR

Square

933 x 1808

0.900 x 2.400

DAR

Square

933 x 2398

1.200 x 1.800

DAR

Square

1222 x 1808

1.200 x 2.400

DAR

Square

1222 x 2398









0.900 x 1.800

SAWN

Diagonal

1020 x 1785

0.900 x 2.400

SAWN

Diagonal

1020 x 2385

1.200 x 1.800

SAWN

Diagonal

1215 x 1785

1.200 x 2.400

SAWN

Diagonal

1215 x 2385









0.900 x 1.800

SAWN

Square

863 x 1829

0.900 x 2.400

SAWN

Square

863 x 2381

1.200 x 1.800

SAWN

Square

1135 x 1829

1.200 x 2.400

SAWN

Square

1135 x 2381

*DIAGONAL sheets measured point to point



Sawn and Pencil Round Lath Lattice square lattice
